CMR12 Series Rotay Union
CMR12 multiple passage rotary unions with 12 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 12 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Very low torque
Features
- Connection Sizes:M5, 1/8", 1/4", 3/8"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
CMR12 Operating Info
- Pressure: -100 kPa ~ 1 MPa
- Max. Rotational Speed: 200RPM
- Temperature Range: -5° C to 80° C

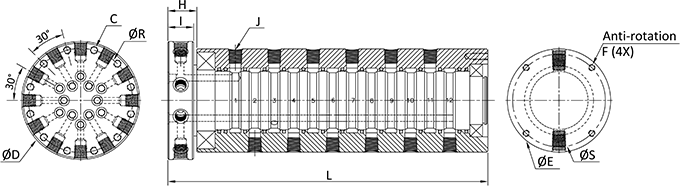

| Model | J(BSPP / NPT) | ФR | ФS | C | ФD | ФE | H | I | L |
|---|---|---|---|---|---|---|---|---|---|
| CMR-1200 | M5 | 47 | 46 | M4 | 54 | 54 | 17 | 16 | 140 |
| CMR-1201 | 1/8" | 66.5 | 53 | M5 | 74.5 | 62 | 21.5 | 22.5 | 155.1 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
