CMR24 Series Rotay Union
CMR24 multiple passage rotary unions with 24 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 24 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Very low torque
Features
- Connection Sizes:M5, 1/8"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
CMR24 Operating Info
- Pressure: -100 kPa ~ 1 MPa
- Max. Rotational Speed: 150RPM
- Temperature Range: -5° C to 80° C

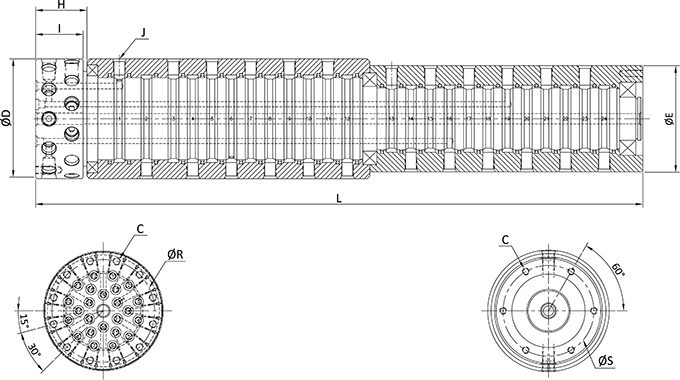

| Model | J(BSPP / NPT) | ФR | ФS | C | ФD | ФE | H | I | L |
|---|---|---|---|---|---|---|---|---|---|
| CMR-2400 | M5 | 71 | 53 | M4 | 79 | 61 | 23.5 | 22.5 | 265 |
| CMR-2401 | 1/8" | 76 | 57 | M5 | 84 | 66 | 32.5 | 31.5 | 302 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
