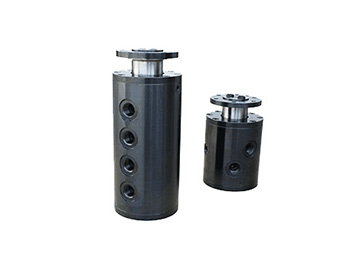

HIGH SPEED AND HIGH PRESSURE ROTARY UNION
Cosmau CSM series multiple passage rotary unions with 1, 2, 3, 4 channel for hydraulic oil, gas transfer in rotating system, high speed and high pressure applications.
- Transmit compressed air, hydraulic when 360°unrestricted rotation
- Very low torque, High Speed, Long Life
- Contactless seal technology
- Suitable media: Oil, gas
Features
- Number Of Channel: 1~4
- Connection Size: G1/8, G1/4, G3/8
- Media Types:Air, Oil
Operating Info
- Pressure:Max 250bar
- Max. Rotational Speed:3000RPM
- Temperature Range: -40°C to 120°C
Notes: Please contact us to get the solutions
