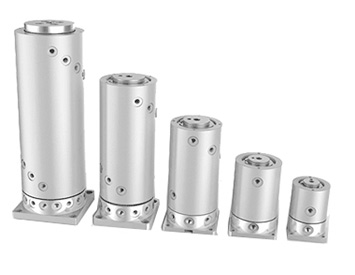

MQR PNEUMATIC ROTARY UNION
Cosmau MQR series multiple passage rotary unions with 2, 4, 8, 12, 16 channel for compressed air, gas transfer in rotating system.
- Transmit compressed air, gas when 360°unrestricted rotation
- Very low torque, High Speed, Metal seal
- Standard no flange, flange can be option
- M5 connection
- Completely replaced SMC mqr rotary union
Features
- Number Of Channel: 2~16
- Connection Size: M5
- Media Types:Air
Operating Info
- Pressure:-100kPa ~ 10bar
- Max. Rotational Speed:3000RPM
- Temperature Range: -10°C to 80°C
