MP10-H Series Rotay Union
MP10-H multiple passage rotary unions with 10 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 10 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP10-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 200RPM
- Temperature Range: -18° C to 150° C

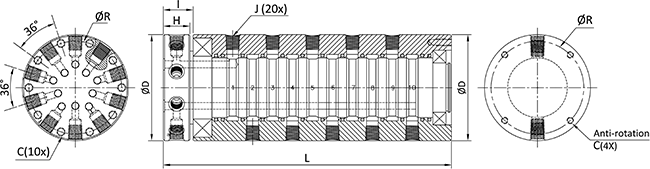

| Model | J(BSPP / NPT) | ФR | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-1001-H | 1/8" | 69 | M6 | 79.5 | 22.5 | 23 | 243.8 |
| AP-1002-H | 1/4" | 74 | M6 | 84 | 26.5 | 27 | 270.3 |
| AP-1003-H | 3/8" | 84 | M6 | 94.5 | 30.5 | 31 | 330.2 |
| AP-1004-H | 1/2" | 102 | M8 | 114.5 | 34.5 | 35 | 375.5 |
| AP-1005-H | 3/4" | 127 | M8 | 139.5 | 42.5 | 43 | 428.8 |
| AP-1006-H | 1" | 149.5 | M10 | 164.5 | 56.5 | 57 | 526.8 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
