MP2-G Series Rotay Union
MP2-G multiple passage rotary unions with 2 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 2 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: M5, 1/8", 1/4", 3/8", 1/2"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
MP2-G Operating Info
- Pressure: -100 kPa ~ 1.0 MPa
- Max. Rotational Speed: 300RPM
- Temperature Range: -5° C to 80° C

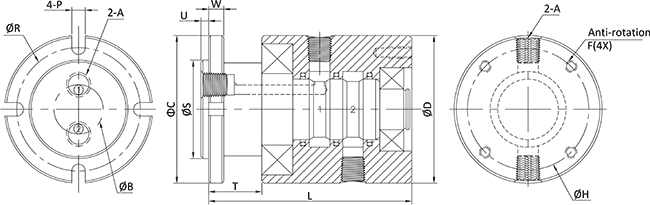

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-201-G | 1/8" | 17 | 54.5 | 54.5 | 44.5 | 34 | 3 | 6 | 21 | 5.2 | M5 | 44.5 | 69.6 |
| MP-202-G | 1/4" | 20 | 59.5 | 59.5 | 50 | 40 | 3 | 6 | 21 | 5.2 | M5 | 50 | 72.6 |
| MP-203-G | 3/8" | 23 | 69.5 | 69.5 | 59 | 47 | 3 | 6 | 21 | 6.5 | M6 | 59 | 80.5 |
| MP-204-G | 1/2" | 27 | 79.5 | 79.5 | 69 | 58 | 3 | 7 | 25 | 6.5 | M6 | 69 | 91.5 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
