MP3-G Series Rotay Union
MP3-G multiple passage rotary unions with 3 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 3 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: M5, 1/8", 1/4", 3/8", 1/2"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
MP3-G Operating Info
- Pressure: -100 kPa ~ 1.0 MPa
- Max. Rotational Speed: 300RPM
- Temperature Range: -5° C to 80° C

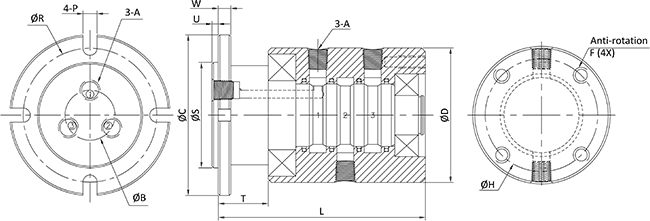

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-301-G | 1/8" | 20 | 59.5 | 59.5 | 50 | 40 | 3 | 6 | 21 | 5.2 | M5 | 50 | 78.8 |
| MP-302-G | 1/4" | 22 | 59.5 | 59.5 | 50 | 40 | 3 | 6 | 21 | 5.2 | M5 | 50 | 83.4 |
| MP-303-G | 3/8" | 27 | 79.5 | 79.5 | 69 | 57 | 3 | 6 | 21 | 6.5 | M6 | 69 | 94.1 |
| MP-304-G | 1/2" | 32 | 89.5 | 89.5 | 79 | 64 | 3 | 7 | 25 | 6.5 | M6 | 79 | 107.4 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
