MP6-H Series Rotay Union
MP6-H multiple passage rotary unions with 6 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 6 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP6-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 300RPM
- Temperature Range: -18° C to 150° C

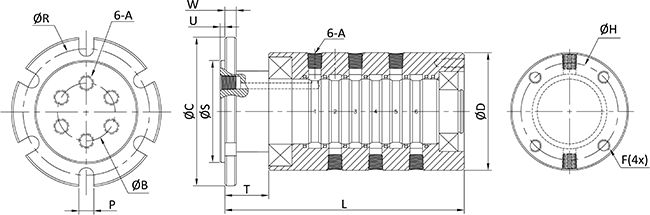

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-601-H | 1/8" | 41.5 | 84.5 | 69.5 | 74 | 62.5 | 3 | 6 | 24 | 6.5 | M6 | 59 | 178.2 |
| MP-602-H | 1/4" | 45 | 89.5 | 73.5 | 79 | 68 | 3 | 6 | 24 | 6.5 | M6 | 63 | 192 |
| MP-603-H | 3/8" | 51 | 99.5 | 84 | 89 | 77.5 | 3 | 6 | 24 | 6.5 | M6 | 73.5 | 212.4 |
| MP-604-H | 1/2" | 67.5 | 129.5 | 98.5 | 116.5 | 100 | 3 | 8 | 32 | 9 | M8 | 85.5 | 263.4 |
| MP-605-H | 3/4" | 83.5 | 149.5 | 118.5 | 136.5 | 121 | 4 | 9 | 32 | 9 | M8 | 105.5 | 299.5 |

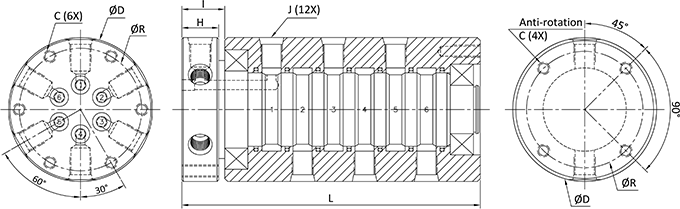

| Model | J(BSPP / NPT) | ФR | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-601-H | 1/8" | 59 | M6 | 69.5 | 19.5 | 20 | 179.2 |
| AP-602-H | 1/4" | 59 | M6 | 69.5 | 22.5 | 23 | 189.4 |
| AP-603-H | 3/8" | 64 | M6 | 74.5 | 28.5 | 29 | 223 |
| AP-604-H | 1/2" | 87 | M8 | 99.5 | 33.5 | 34 | 266 |
| AP-605-H | 3/4" | 102 | M8 | 114.5 | 42.5 | 43 | 305 |
| AP-606-H | 1" | 125 | M10 | 139.5 | 56.5 | 57 | 365 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
