MP8-G Series Rotay Union
MP8-G multiple passage rotary unions with 8 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 8 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: M5, 1/8", 1/4", 3/8"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
MP8-G Operating Info
- Pressure: -100 kPa ~ 1.0 MPa
- Max. Rotational Speed: 300RPM
- Temperature Range: -5° C to 80° C

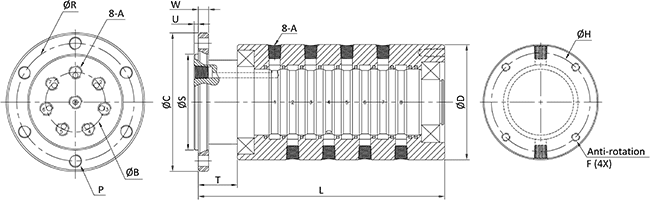

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-801-G | 1/8" | 44 | 84 | 63.5 | 74 | 63 | 3 | 7 | 18 | M5 | M5 | 53 | 127.1 |
| MP-802-G | 1/4" | 50 | 89.5 | 68.5 | 80.5 | 70 | 3 | 7 | 21.5 | M5 | M5 | 58 | 141.3 |
| MP-803-G | 3/8" | 63 | 114 | 94.5 | 104 | 90 | 3 | 7 | 30.5 | M5 | M5 | 84 | 176.3 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
