HD Series Rotay Unions
HD single passage rotary union is flexible enough for any application. Balanced mechanical seal and stainless steel rotor suitable for rotating equipment.
- Rotary Joints and Rotary Unions allow the feed through of water, air, coolant, oil, vacuum and a variety of other media
- Self-supported rotating union,Radial housing connection
Features
- Connection Sizes:1/8" ~ 2-1/2"
- Connection Type:Rc threads
- Media Types:Water, Air, Oil
HD Operating Info
- Max. Pressure:10BAR
- Max. Rotational Speed:1000RPM
- Temperature Range:Max.90°C

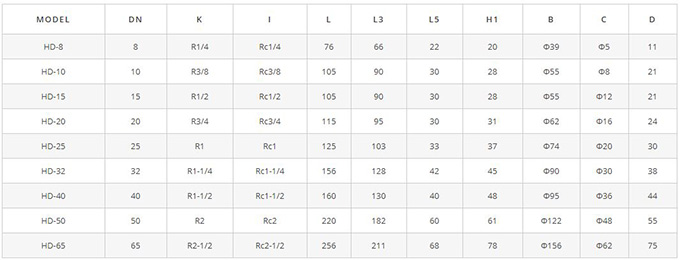

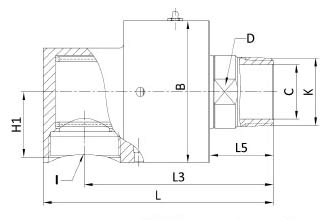

HD Series Mono flow

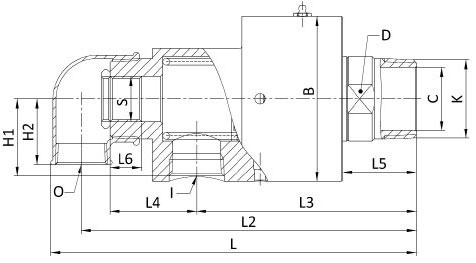

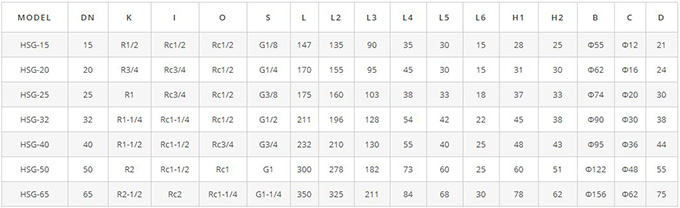

HSG Series Dual flow(Stationary Internal Pipe)
Drawings not actual szie, dimensions are in millimeters.
