CGS High Speed Rotay Unions
The CGS series rotary joint is used for high speed, low pressure applications, the media can be both hydraulic and pneumatic, balanced sealing design, double-ball bearing, integrated structure, single-spring design andself-support fixture.
- LH/RH rotor thread direction
- High reliability and long lifespan
- Stainless steel shaft
Features
- Connection Sizes:1/8" ~ 1-1/2"
- Connection Type: Rc
- Media Types:Air, Vacuum, Hydraulic
CGS Operating Info
- Pressure: 3MPa
- Rotational Speed: Max.3000RPM
- Temperature Range: Max.120° C

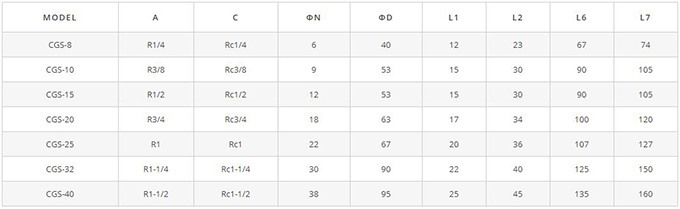

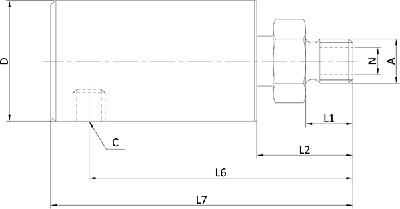

Drawings not actual szie, dimensions are in millimeters.
