MP8-H Series Rotay Union
MP8-H multiple passage rotary unions with 8 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 8 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP8-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 200RPM
- Temperature Range: -18° C to 150° C

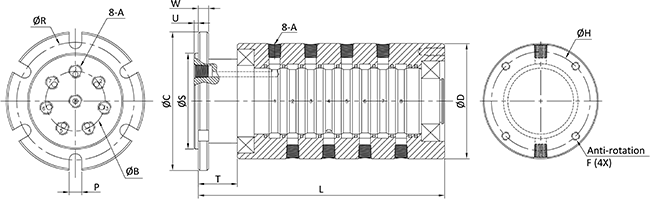

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-801-H | 1/8" | 53 | 94.5 | 74.5 | 84 | 72.5 | 3 | 6 | 24 | 6.5 | M6 | 64 | 211.4 |
| MP-802-H | 1/4" | 58 | 104 | 79 | 93.5 | 81 | 3 | 6 | 24 | 6.5 | M6 | 68.5 | 229.4 |
| MP-803-H | 3/8" | 67 | 114.5 | 98.5 | 104 | 93 | 3 | 6 | 24 | 6.5 | M6 | 88 | 267.6 |
| MP-804-H | 1/2" | 81 | 139.5 | 109 | 126.5 | 112.5 | 3 | 8 | 32 | 9 | M8 | 96 | 320.6 |
| MP-805-H | 3/4" | 100 | 164.5 | 133.5 | 151.5 | 121 | 4 | 9 | 32 | 9 | M8 | 120.5 | 361.6 |

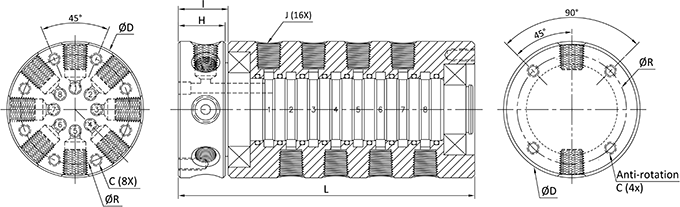

| Model | J(BSPP / NPT) | ФR | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-801-H | 1/8" | 64 | M6 | 74.5 | 19.5 | 20 | 214.5 |
| AP-802-H | 1/4" | 64 | M6 | 74.5 | 22.5 | 23 | 228.4 |
| AP-803-H | 3/8" | 79 | M6 | 89.5 | 28.5 | 29 | 278.4 |
| AP-804-H | 1/2" | 97 | M8 | 109.5 | 33.5 | 34 | 320.5 |
| AP-805-H | 3/4" | 117 | M8 | 129.5 | 42.5 | 43 | 368.4 |
| AP-806-H | 1" | 135 | M10 | 149.5 | 56.5 | 57 | 443.5 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
