ETW12 Ethernet Slip Ring
Slip ring is a precision device can be used in any electromechanical system that transfer signal and power from a statinary to a state structive, and the power and all kinds of signal can combination in one slip ring.

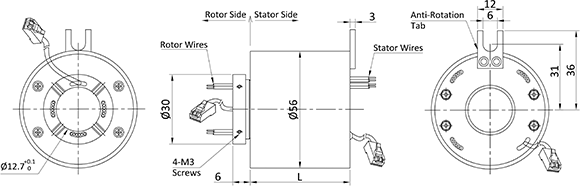

ETW12 Ethernet slip ring with compact design, 12.7 mm routing space for shaft mounting, 1~4 channel Ethernet can combine with 2A signal and power(5A,10A). Gold-gold plating which ensures low BER(bit-error rate)and high signal-noise ratio
Features
- Ethernet:100M/1000M baseT
- BER(bit-error rate):10E-11
- Connectors:RJ45
- Precision ball bearings for long life
Benefits
- Extremely compact
- Low torque minimizes system torque budget
- 360° continuous rotation
- Rapid delivery
| MODEL | TOTAL CIRCUITS | AMPS / CIRCUITS | DATA SPEED | VOLTAGE(V) | LENGTH | LEAD WIRE LENGTH |
|---|---|---|---|---|---|---|
| ETW121-S04 | 12 | (4x) 2A, (1x) Ethernet | 1000Base-T | 380 | 56.9mm | 11.8"(300mm) |
| ETW121-P04 | 12 | (4x) 10A, (1x) Ethernet | 1000Base-T | 380 | 56.9mm | 11.8"(300mm) |
| ETW121-S10 | 18 | (10x) 2A, (1x) Ethernet | 1000Base-T | 380 | 74.3mm | 11.8"(300mm) |
| ETW121-P04S06 | 18 | (4x) 10A, (6x) 2A, (1x) Ethernet | 1000Base-T | 380 | 74.3mm | 11.8"(300mm) |
| ETW121-S16 | 24 | (16x) 2A, (1x) Ethernet | 1000Base-T | 380 | 91.7mm | 11.8"(300mm) |
| ETW121-P04-S12 | 24 | (4x) 10A, (12x) 2A, (1x) Ethernet | 1000Base-T | 380 | 91.7mm | 11.8"(300mm) |
| ETW121-S22 | 30 | (22x) 2A, (1x) Ethernet | 1000Base-T | 380 | 109.1mm | 11.8"(300mm) |
Note: Not all of part number list in this table, if can not find suitable products, please contact us!
