ETW50 Ethernet Slip Ring
Slip ring is a precision device can be used in any electromechanical system that transfer signal and power from a statinary to a state structive, and the power and all kinds of signal can combination in one slip ring.
Gold-gold plating which ensures low BER(bit-error rate)and high noise-signal ratio.

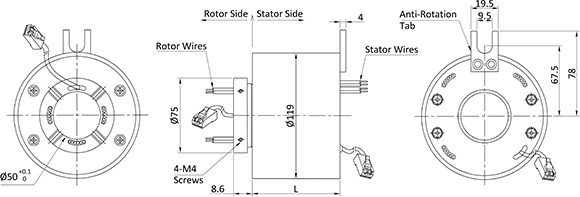

ETW50 with 50 mm through hole, 1~4 Ethernet channel, signal and power combination options. More Ethernet channel can be customized.
Features
- Ethernet:1~4channel 100M/1000M baseT
- BER(bit-error rate):10E-11
- connectors:RJ45
- Precision ball bearings for long life
Benefits
- Low torque minimizes system torque budget
- 360° continuous rotation
- Rapid delivery
| MODEL | TOTAL CIRCUITS | AMPS / CIRCUITS | DATA SPEED | VOLTAGE(V) | LENGTH | LEAD WIRE LENGTH |
|---|---|---|---|---|---|---|
| ETW501-S04 | 12 | (4x) 2A, (1x) Ethernet | 1000Base-T | 440 | 78.8mm | 11.8"(300mm) |
| ETW501-P04 | 12 | (4x) 10A, (1x) Ethernet | 1000Base-T | 440 | 78.8mm | 11.8"(300mm) |
| ETW501-S10 | 18 | (10x) 2A, (1x) Ethernet | 1000Base-T | 440 | 101.6mm | 11.8"(300mm) |
| ETW501-P04S06 | 18 | (4x) 10A, (6x) 2A, (1x) Ethernet | 1000Base-T | 440 | 101.6mm | 11.8"(300mm) |
| ETW501-16S | 24 | (16x) 2A, (1x) Ethernet | 1000Base-T | 440 | 124.4mm | 11.8"(300mm) |
| ETW501-P04S12 | 24 | (4x) 10A, (12x) 2A, (1x) Ethernet | 1000Base-T | 440 | 124.4mm | 11.8"(300mm) |
| ETW501-22S | 30 | (22x) 2A, (1x) Ethernet | 1000Base-T | 440 | 147.2mm | 11.8"(300mm) |
Note: Not all of part number list in this table, if can not find suitable products, please contact us!
