MEP8 Series Pneumatic Hydraulic Slip Ring
MEP8 slip ring with 8 channel gas or fluid that can combine with signal and power cable in continuous rotating system, and the signal circuits can customized, the protection level can be IP51, IP65, IP68, etc.
- Transmit pneumatic / hydraulic / electric at the same time when 360°unrestricted rotation
- No influence each other
- Custom solutions with affordable price
- Flange / through hole structure optional
Features
- Media: liquid, gas, hot oil, signal/power
- Pressure 0~5000PSI
- Shaft: Stainless steel, Housing: AL alloy
- Work Temp.:-20° C to 80° C
Benefits
- Compact
- Low torque
- 360° continuous rotation
- Rapid delivery

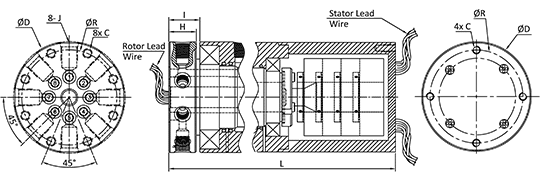

| Model | J(BSPP) | ФD | ФR | H | I | F |
|---|---|---|---|---|---|---|
| MEP800 | M5 | 64 | 54 | 16.5 | 17.5 | M5 |
| MEP801 | 1/8" | 64 | 54 | 19.5 | 20.5 | M6 |
| MEP802 | 1/4" | 69 | 59 | 22.5 | 23.5 | M6 |
| MEP803 | 3/8" | 79 | 69 | 26.5 | 27.5 | M6 |
| Model | Electrical(Signal) | Pneumatic Passage | Connection Size | Length(L) |
|---|---|---|---|---|
| MEP800-S06 | 6 | 8 | M5 | 166.9 |
| MEP801-S06 | 6 | 8 | G 1/8" | 177.9 |
| MEP802-S06 | 6 | 8 | G 1/4" | 189.9 |
| MEP803-S06 | 6 | 8 | G 3/8" | 217.9 |
| MEP800-S12 | 12 | 8 | M5 | 174.9 |
| MEP801-S12 | 12 | 8 | G 1/8" | 185.9 |
| MEP802-S12 | 12 | 8 | G 1/4" | 197.9 |
| MEP803-S12 | 12 | 8 | G 3/8" | 225.9 |
| MEP800-S18 | 18 | 8 | M5 | 183.9 |
| MEP801-S18 | 18 | 8 | G 1/8" | 194.9 |
| MEP802-S18 | 18 | 8 | G 1/4" | 206.9 |
| MEP803-S18 | 18 | 8 | G 3/8" | 234.9 |
| MEP800-S24 | 24 | 8 | M5 | 191.9 |
| MEP801-S24 | 24 | 8 | G 1/8" | 202.9 |
| MEP802-S24 | 24 | 8 | G 1/4" | 214.9 |
| MEP803-S24 | 24 | 8 | G 3/8" | 242.9 |
| MEP800-S36 | 36 | 8 | M5 | 206.9 |
| MEP801-S36 | 36 | 8 | G 1/8" | 217.9 |
| MEP802-S36 | 36 | 8 | G 1/4" | 229.9 |
| MEP803-S36 | 36 | 8 | G 3/8" | 257.9 |
Note: not all of the products list in this table, if can not find suitable products, please contact us freely.
