Through Bore Slip Ring STR100 series
Slip ring is suitable for unlimited, continuous or intermittent rotation system, transmit power and data signals in electromechanical systems, through a simple operation to improve system performance, and does not damage the wire.

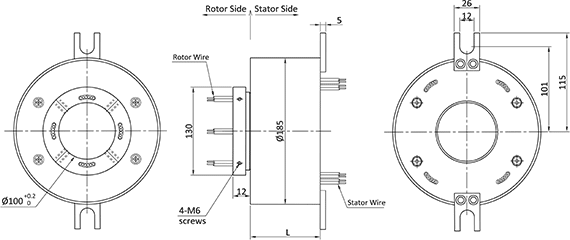

STR100 series slip ring with 100mm hole and 185mm outer diameter; multiple points of contact technology to ensure stable contact, low pressure, low friction, non maintenance,long life.
Features
- 2-100 circuits model
- Speeds up to 250 RPM
- Gold-on-gold contacts
- Precision ball bearings for long life
- Flying leads
Benefits
- Direction of lead wire exits
- Custom mechanical integration features
- Combined with power and signal
- 360° continuous rotation
- IP65,IP68 Optional
| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 6 | 0~600 | 67 |
| 12 | 0~600 | 91 |
| 18 | 0~600 | 115 |
| 24 | 0~600 | 139 |
| 36 | 0~600 | 192 |
| 48 | 0~600 | 240 |
| 56 | 0~600 | 272 |
| 72 | 0~600 | 334 |
Model no. description:
Example: STR100-P06S06
STR100----100mm Through Hole; P06----Power Circuits; S06----Signal Circuits
