Through Bore Slip Ring STR120 series
This slip ring require unrestricted use of mainly continuous rotation of the position where the transmission power or data from a stationary to a rotating structure, through the brush bundles contact. Through hole slip ring basic technical parameters include diameter, inner diameter, length, number of rings, voltage, current, maximum speed, etc.

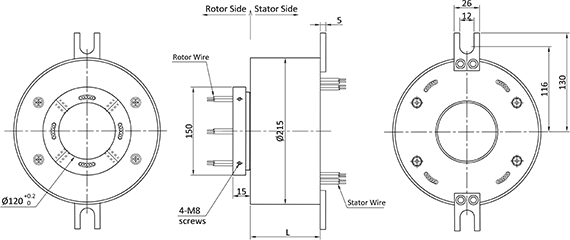

The STR120 series slip rng provide 120mm holle for shaft mount, the ouside diameter is 215mm, the circuits can be power, signal or others, and it can top to 120 circuits.
Features
- 2-120 circuits model
- Standard 5A, 10A
- Speeds up to 150 RPM
- Precious metal contacts
- Precision ball bearings for long life
Benefits
- Direction of lead wire exits
- Low torque minimizes system torque budget
- Custom mechanical integration features
- 360° continuous rotation
- IP65,IP68 Optional
| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 6 | 0~600 | 77 |
| 12 | 0~600 | 107 |
| 18 | 0~600 | 137 |
| 24 | 0~600 | 167 |
| 36 | 0~600 | 232 |
| 48 | 0~600 | 292 |
| 56 | 0~600 | 332 |
| 72 | 0~600 | 422 |
Model no. description:
Example: STR120-P06S06
STR120----120mm Through Hole; P06----Power Circuits; S06----Signal Circuits
