Through Bore Slip Ring STR150 series
Through bore slip rings with a center hole, which is mainly used to transmit precise signals, weak current, high current, high voltage, high speed data.

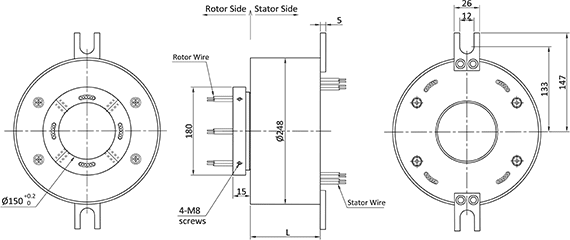

The STR 150 series slip ring features a 150mm through hole and a compact 248mm ouside diameter, the through-bore provides routing space for hydraulics, pneumatics, or for a concentric shaft mount, and the length can be options(depending on the number of circuits).
Features
- 2-120 circuits model
- Speeds up to 150 RPM
- Precious metal contacts
- Precision ball bearings for long life
- Flying leads
Benefits
- Direction of lead wire exits
- Custom mechanical integration features
- Combined with power and signal
- 360° continuous rotation
- IP65,IP68 Optional
| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 6 | 0~600 | 87 |
| 12 | 0~600 | 117 |
| 18 | 0~600 | 147 |
| 24 | 0~600 | 177 |
| 36 | 0~600 | 242 |
| 48 | 0~600 | 302 |
| 56 | 0~600 | 342 |
| 72 | 0~600 | 432 |
Model no. description:
Example: STR150-P06S06
STR150----150mm Through Hole; P06----Power Circuits; S06----Signal Circuits
