Through Bore Slip Ring STR70 series
Slip ring is a connector in continuous rotary system, also known as rotary joints, collecting ring, rotary electrical interfaces, electrical slip ring, commutator, Particularly suitable for power or data transfer from a stationary to a rotating interface.

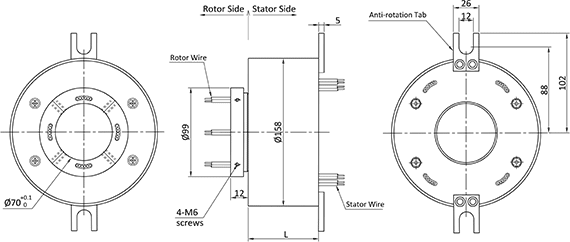

STR70 series slip ring with 70mm hole and 158mm ouside diameter, its provide routing space for shaft mount. Continuous 360° rotation to transfer power, signal, data.
Features
- 2-100 circuits model
- Standard 5A, 10A
- Speeds up to 300 RPM
- Precious metal contacts
- Precision ball bearings for long life
Benefits
- Direction of lead wire exits
- Low torque minimizes system torque budget
- Custom mechanical integration features
- 360° continuous rotation
- IP65,IP68 Optional
| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 2 | 0~600 | 45 |
| 4 | 0~600 | 52.6 |
| 6 | 0~600 | 60.2 |
| 12 | 0~600 | 83 |
| 18 | 0~600 | 105.8 |
| 24 | 0~600 | 128.6 |
| 36 | 0~600 | 174.2 |
| 48 | 0~600 | 223.8 |
| 56 | 0~600 | 254.2 |
| 72 | 0~600 | 315 |
Model no. description:
Example: STR70-P06S06
STR70----70mm Through Hole; P06----Power Circuits; S06----Signal Circuits
