Through Bore Slip Ring STR80 series
STR series hollow shaft slip ring is specially designed for hydraulics, pneumatics, or for a concentric shaft mount, using advanced multi-point contact brush cluster, at a very low friction to ensure access to reliable, fully meet your different transmission scheme.

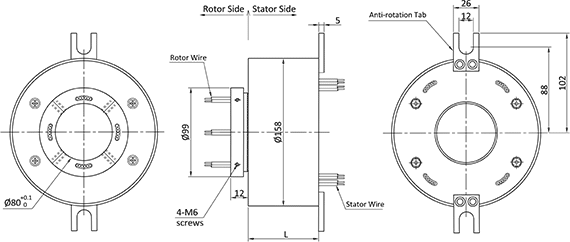

The 80mm hole and 158mm ouside diameter slip ring can top to 100 circuits for your appllications, and the length can be options(depending on the number of circuits), hybrid signal and power transmission.
Features
- 2-100 circuits model
- Standard 5A,10A
- Speeds up to 250 RPM
- Precious metal contacts
- Precision ball bearings for long life
Benefits
- Direction of lead wire exits
- Low torque minimizes system torque budget
- Custom mechanical integration features
- 360° continuous rotation
- IP65,IP68 Optional
| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 6 | 0~600 | 60.2 |
| 12 | 0~600 | 83 |
| 18 | 0~600 | 105.8 |
| 24 | 0~600 | 128.6 |
| 36 | 0~600 | 174.2 |
| 48 | 0~600 | 223.8 |
| 56 | 0~600 | 254.2 |
| 72 | 0~600 | 315 |
Model no. description:
Example: STR80-P06S06
STR80----80mm Through Hole; P06----Power Circuits; S06----Signal Circuits
