Through Bore Slip Ring STR90 series
STR90 series slip ring is standard through-hole slip ring, circuits and current are optional, 90mm center hole specifically for hydraulic or pneumatic drive shaft mounted, advanced fiber brush technology to ensure low friction, low contact resistance, less friction debris.
360 ° continuous rotation transmitting analog or digital signals, compatible with the Fieldbus protocol. Standardized, modular design, and can be customized as the customer requires.
Features
- 2-100 circuits model
- Speeds up to 250 RPM
- Precious metal contacts
- Precision ball bearings for long life
- Flying leads
Benefits
- Direction of lead wire exits
- Custom mechanical integration features
- Combined with power and signal
- 360° continuous rotation
- IP65,IP68 Optional

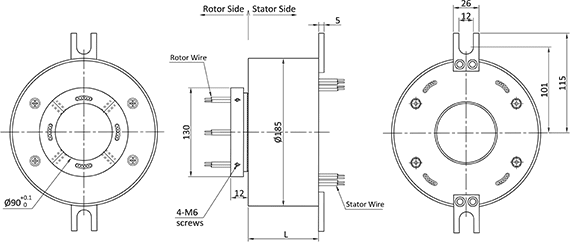

| POWER / SIGNAL CIRCUITS | VOLTAGE (AC/DC V) | LENGTH (mm) |
|---|---|---|
| 6 | 0~600 | 67 |
| 12 | 0~600 | 91 |
| 18 | 0~600 | 115 |
| 24 | 0~600 | 139 |
| 36 | 0~600 | 192 |
| 48 | 0~600 | 240 |
| 56 | 0~600 | 272 |
| 72 | 0~600 | 334 |
Model no. description:
Example: STR90-P06S06
STR90----90mm Through Hole; P06----Power Circuits; S06----Signal Circuits
